9. marμS


9.1 Introduction


marmus

The "marμS"-page can be accessed by selecting the corresponding tab in the main window. Here, you can control the marμS generator (Incoatec "IuS" source).

This page is accessible only if:

9.2 "Remote Mode" for Incoatec IuS Generator

The Incoatec IuS micro-focus generator can be controlled by a PC via a USB interface. To use the generator in "remote mode", the generator must be configured explicitely to operate in remote mode on the panel of the generator. When operating the generator in "remote mode", the local control on the instrument itself is disabled, i.e. you cannot open the X-ray shutters on the instrument and you cannot turn on or off the X-rays. If the "remote mode" is enabled, you can still switch to "local mode" on the front panel of the generator. In "local mode", the mar345dtb software will only show the status of the generator but you cannot operate the shutter and drive up or down the HV and current from within the software.

Important note: when starting up the generator it is CRUCIAL not only to turn the key but also to push the button "HV on" on the the generator. Only after manually pushing that button, the mar345dtb can take over and ramp up the generator. Likewise, when completely shutting down the generator, one should also manually push "HV off" on the generator before turning the key.


9.3 Operations

There are only 3 useful states of operation of the X-ray generator:

Hence, from the user interface you select one of the 3 states. Setting the high voltage or current to other than the default values (50 kV, 600 uA) is possible, but discouraged. The generator itselfs features a local "SAFETY" shutter. For normal operation with the mardtb goniostat, the SAFETY shutter of the generator may remain open.

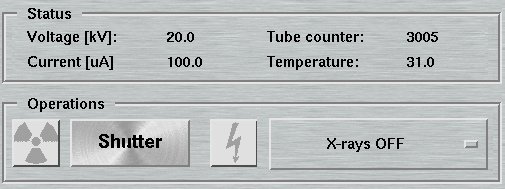

If the high voltage is turned on, in the control area you will see a "High Voltage" icon. If the generator is in STANDBY mode or at lower power, the icon will show a white background. At high power, the background turns yellow as shown in the picture.
marmus

If X-rays are leaving the generator, i.e. if the HV is on and the generator shutters are open, a yellow "Radiation" icon will show up on the right hand side of the push buttons for the shutters.

Besides those 3 basic generator operation modes, there are 2 special ramp up protocols implemented. A "warm-up" procedure is recommended to use after 8 hours of shutdown of the generator. This procedure takes about 3 minutes and gently ramps up the generator from 0 to full power.

A "tube conditioning" procedure is recommended after 56 days of inactivity. The generator is slowly ramped up. The entire procedure takes about 3 hours. In all cases, the mar345dtb software keeps track of the time the generator has been completely turned off and it will tell you if it is time to use the warm-up or tube-conditioning procedure. Since this information is not an intrinsic intelligence of the generator but rather of the mar345dtb software, the knowledge about the proper time really is computer specific.

In the lower area of this page, you have a choice of taking special actions after finishing a data collection. Choose one of:

In order to increase the lifetime of the tube it is beneficial to let the generator run in FULL POWER mode not longer than necessary. Hence, it is suggested to automatically go into STANDBY mode after data collection. You have to keep in mind, that it does not take longer than 1 minute to go back into FULL POWER mode, so even if you plan to resume work shortly after a data collection has finished it would still make sense to go into STANDBY.

Likewise, if you don't plan to resume work for a couple of hours, you might as well turn off the X-rays at all.
